Emhart Check Detector

Specification

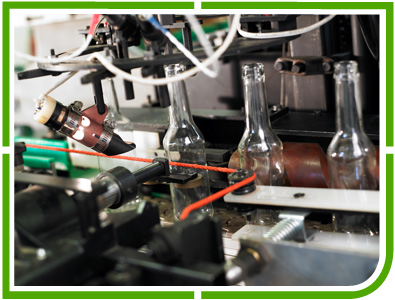

This machine provides non stop bottle handling and inspection in one station. It offers finish, body, and neck check detection for a wide range of narrow neck and wide mouth wear. Non round inspection is possible with the addition of a conversion kit for some containers. Mould number reading is also possible with the addition of a kit.

Faults Detected

Split rings, Cracks in the body, Cracks in the neck, Cracks in the base

Container range

Diameter from 19 to 165mm
Height from 25.4 to 330mm

Speed

Up to 230bpm (depending on the modules installed and the characteristics of the container)

Voltages and frequencies

230, 380, 415, 460, 575V
50 - 60 Hz

Weight

720kg
