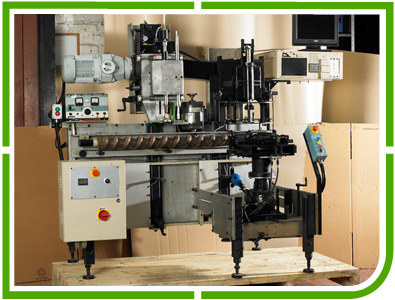

Emhart Combined Inspection Machine

Specification

The standard machine will inspect most containers round and non round in three inspection stations. Spacing of the containers is achieved using an infeed screw.

Faults Detected

Choked Bore (35 to 65mm bore depth), External finish diameter, Height, Dip, Saddle, Split rings, Cracks in the body, Cracks in the neck, Cracks in the base

Container range

Diameter 35 to 140mm
Height 76 to 368mm

Speed

Up to 230bpm

Voltages and frequencies

440V
50 - 60 Hz

Compressed Air

1.5 to 4.5 bar (20 to 60 psi) depending on the weight of the container

Weight

1200kg
