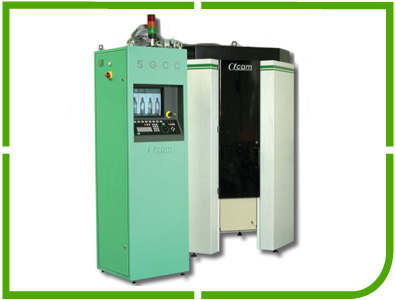

SGCC Alphacam

Specification

A non-contact sidewall inspection machine; which can be installed without modifications onto the plant conveyor. Dimensional inspection can be done without the need for additional cameras. It can be upgraded to include sidewall stress inspection.

Faults Detected

Stones, Bubbles, Laps, Inclusions, Birdswings, Stress (option)

Container range

Diameter from 16 to 180mm
Height from 35 to 350mm

Speed

Up to 300bpm (depending on the modules installed and the characteristics of the container.

Voltages and frequencies

220, 380, 440V
50 - 60 Hz

Compressed air

3 to 6 bar (40 to 90 psi) depending on the weight of the container

Computer link (process)

RS 232
